Jkongmotor 57bygh Electric Stepping Motor CNC Hybrid Geared Stepper Motor with Planetary Gearbox / Brake / Encoder
Product Description:
JKONGMOTOR stepping motor is a motor that converts electrical pulse signals into corresponding angular displacements or linear displacements. This small stepper motor can be widely used in various fields, such as a 3D printer, stage lighting, laser engraving, textile machinery, medical equipment, automation equipment, etc.
Characteristics of Jkongmotor Stepper Motor
1. The magnetic steel is high grade,we usually use the SH level type.
2. The rotor is be coated,reduce burrs,working smoothly,less noise. We test the stepper motor parts step by step.
3. Stator is be test and rotor is be test before assemble.
4. After we assemble the stepper motor, we will do one more test for it, to make sure the quality is good.
Jkongmotor has a wide range of micro motor production lines in the industry, including Stepper Motor, DC Servo Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Planetary Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.
Jkongmotor Nema 23 ISS Integrated Stepper Servo motor:
| Model | step Angle (1.8°) | phase Current (A) | Rated Resistance (0) | Rated Torque (N.m) | Total body height L (mm) | Encoder | Control method (optional) |
| JKISS57-P01A | 1.8 | 2 | 1.4 | 0.55 | 65 | 1000ppr/17bit | pulse | RS485 | CANopen |
| JKISS57-P02A | 1.8 | 2.8 | 0.9 | 1.2 | 80 | 1000ppr/17bit | pulse | RS485 | CANopen |
| JKISS57-P03A | 1.8 | 2.8 | 1.1 | 1.89 | 100 | 1000ppr/17bit | pulse | RS485 | CANopen |
| JKISS57-P04A | 1.8 | 3 | 1.2 | 2.2 | 106 | 1000ppr/17bit | pulse | RS485 | CANopen |
| JKISS57-P05A | 1.8 | 4.2 | 0.75 | 2.8 | 124 | 1000ppr/17bit | pulse | RS485 | CANopen |
| JKISS57-P06A | 1.8 | 4.2 | 0.9 | 3 | 136 | 1000ppr/17bit | pulse | RS485 | CANopen |
0.9 degree nema 23 stepper motor:
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm2 | Kg |
| JK57HM41-1006 | 0.9 | 41 | 1 | 5.7 | 8 | 3.9 | 6 | 210 | 120 | 0.45 |
| JK57HM41-2804 | 0.9 | 41 | 2.8 | 0.7 | 2.2 | 5 | 4 | 210 | 120 | 0.45 |
| JK57HM51-2006 | 0.9 | 51 | 2 | 1.6 | 2.2 | 7.2 | 6 | 380 | 280 | 0.68 |
| JK57HM56-1006 | 0.9 | 56 | 1 | 7.4 | 17.5 | 9 | 6 | 400 | 300 | 0.7 |
| JK57HM56-2006 | 0.9 | 56 | 2 | 1.8 | 4.5 | 9 | 6 | 400 | 300 | 0.7 |
| JK57HM56-2804 | 0.9 | 56 | 2.8 | 0.9 | 3.3 | 12 | 4 | 400 | 300 | 0.7 |
| JK57HM76-1006 | 0.9 | 76 | 1 | 8.6 | 23 | 13.5 | 6 | 680 | 480 | 1 |
| JK57HM76-2006 | 0.9 | 76 | 2 | 3 | 7 | 13.5 | 6 | 680 | 480 | 1 |
| JK57HM76-2804 | 0.9 | 76 | 2.8 | 1.15 | 5.6 | 18 | 4 | 680 | 480 | 1 |
1.2 degree nema 23 stepper motor:
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | kg.cm | g.cm | g.cm2 | Kg |
| JK57H3P42-5206 | 1.2 | 42 | 5.2 | 1.3 | 1.4 | 4.5 | 210 | 110 | 0.45 |
| JK57H3P56-5606 | 1.2 | 56 | 5.6 | 0.7 | 0.7 | 9 | 400 | 300 | 0.75 |
| JK57H3P79-5206 | 1.2 | 79 | 5.2 | 0.9 | 1.5 | 15 | 680 | 480 | 1.1 |
1.8 degree nema 23 stepper motor:
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm2 | Kg |
| JK57HM41-1006 | 0.9 | 41 | 1 | 5.7 | 8 | 3.9 | 6 | 210 | 120 | 0.45 |
| JK57HM41-2804 | 0.9 | 41 | 2.8 | 0.7 | 2.2 | 5 | 4 | 210 | 120 | 0.45 |
| JK57HM51-2006 | 0.9 | 51 | 2 | 1.6 | 2.2 | 7.2 | 6 | 380 | 280 | 0.68 |
| JK57HM56-1006 | 0.9 | 56 | 1 | 7.4 | 17.5 | 9 | 6 | 400 | 300 | 0.7 |
| JK57HM56-2006 | 0.9 | 56 | 2 | 1.8 | 4.5 | 9 | 6 | 400 | 300 | 0.7 |
| JK57HM56-2804 | 0.9 | 56 | 2.8 | 0.9 | 3.3 | 12 | 4 | 400 | 300 | 0.7 |
| JK57HM76-1006 | 0.9 | 76 | 1 | 8.6 | 23 | 13.5 | 6 | 680 | 480 | 1 |
| JK57HM76-2006 | 0.9 | 76 | 2 | 3 | 7 | 13.5 | 6 | 680 | 480 | 1 |
| JK57HM76-2804 | 0.9 | 76 | 2.8 | 1.15 | 5.6 | 18 | 4 | 680 | 480 | 1 |
Product Drawing:
Wire Digram:

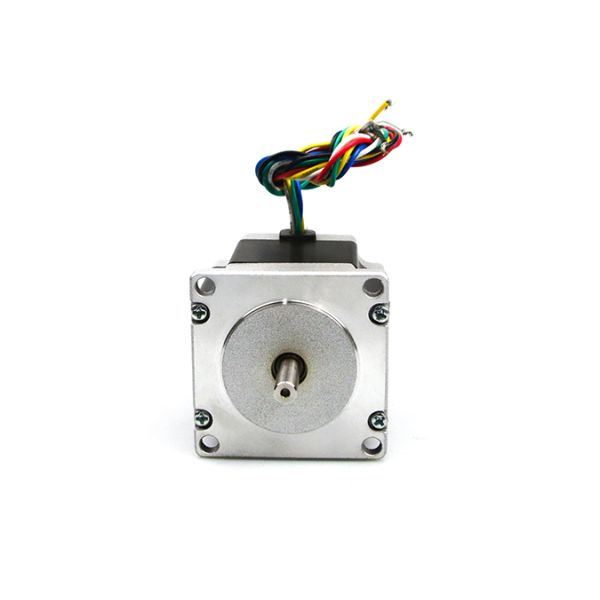

nema 23 stepper motor Images:
1.8 degree round shape nema 23 stepper motor:
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm2 | Kg |
| JK57HY41-0406 | 1.8 | 41 | 0.4 | 30 | 30 | 2.88 | 6 | 180 | 57 | 0.54 |
| JK57HY41-1564 | 1.8 | 41 | 1.56 | 1.8 | 3.6 | 4 | 4 | 180 | 57 | 0.54 |
| JK57HY51-0426 | 1.8 | 51 | 0.42 | 29 | 36 | 4.97 | 6 | 350 | 110 | 0.6 |
| JK57HY51-2804 | 1.8 | 51 | 2.8 | 0.85 | 2.1 | 6.9 | 4 | 350 | 110 | 0.6 |
| JK57HY56-0606 | 1.8 | 56 | 0.6 | 20 | 32 | 6 | 6 | 420 | 135 | 0.65 |
| JK57HY56-2004 | 1.8 | 56 | 2 | 3 | 7 | 8 | 4 | 420 | 135 | 0.65 |
| JK57HY76-1506 | 1.8 | 76 | 1.5 | 3.6 | 6 | 9 | 6 | 720 | 200 | 0.95 |
| JK57HY76-4004 | 1.8 | 76 | 4 | 0.88 | 2.6 | 14 | 4 | 720 | 200 | 0.95 |
Product Drawing:
nema 23 stepper motor Images:
Nema 23 Stepping Motor Customized:
Nema 23 Stepping Motor Shaft Customized:
Company Profile:
Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
Equipments Show:
Production Flow:
Package:
Certification:
