Dc Stepper Motor Kits 4pcs Dm542 Driver+ 4 Pcs Nema23 112mm 3m Motor+1 Set Mach3 + 24v 36v Power Supply For Cnc

Name: Dc Stepper Motor Kits 4pcs Dm542 Driver 4 Pcs Nema23 112mm 3m Motor1 Set Mach3 24v 36v Power Supply For Cnc
Brand: Jkongmotor
Price: 155 USD

China Dc Stepper Motor Kits 4pcs Dm542 Driver+ 4 Pcs Nema23 112mm 3m Motor+1 Set Mach3 + 24v 36v Power Supply For Cnc wholesale

Brand Name : Jkongmotor

Model Number : JK57HS112-3004

Certification : CE, ROHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3-10pcs

Price : US$155~US$165

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 100000pcs/month

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Packaging Details : with export carton . big quantity with pallet

model : Nema 23 stepper motor kits

Leads : 4-8

Current : 1-4.2A

Holding Torque : 0.48-3.1N.m

Step Angle : 1.8 degree

Motor Length : 41mm-112mm

MOQ : 10pcs

Contact Now

Specification

Dc Stepper Motor Kits 4pcs Dm542 Driver+ 4 Pcs Nema23 112mm 3m Motor+1 Set Mach3 + 24v 36v Power Supply For Cnc

Item	Specifications
Step Angle	1.8°
Temperature Rise	80℃max
Ambient Temperature	-20℃~+50℃
Insulation Resistance	100 MΩ Min. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	75N (20mm from the flange)
Max. axial force	15N

Model No.	Step Angle	Motor Length	Current/Phase	Resistance/Phase	Inductance/Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia
Model No.	( °)	(L)mm	A	Ω	mH	N.m	No.	Kg.cm	g.cm²
JK57HS41-1006	1.8	41	1	7.1	8	0.48	6	250	150
JK57HS41-2008	1.8	41	2	1.4	1.4	0.39	8	250	150
JK57HS41-2804	1.8	41	2.8	0.7	1.4	0.55	4	250	150
JK57HS51-1006	1.8	51	1	6.6	8.2	0.72	6	300	230
JK57HS51-2008	1.8	51	2	1.8	2.7	0.9	8	300	230
JK57HS51-2804	1.8	51	2.8	0.83	2.2	1.01	4	300	230
JK57HS56-2006	1.8	56	2	1.8	2.5	0.9	6	350	280
JK57HS56-2108	1.8	56	2.1	1.8	2.5	1	8	350	280
JK57HS56-2804	1.8	56	2.8	0.9	2.5	1.2	4	350	280
JK57HS64-2804	1.8	64	2.8	0.8	2.3	1	4	400	300
JK57HS76-2804	1.8	76	2.8	1.1	3.6	1.89	4	600	440
JK57HS76-3006	1.8	76	3	1	1.6	1.35	6	600	440
JK57HS76-3008	1.8	76	3	1	1.8	1.5	8	600	440
JK57HS82-3004	1.8	82	3	1.2	4	2.1	4	1000	600
JK57HS82-4008	1.8	82	4	0.8	1.8	2	8	1000	600
JK57HS82-4204	1.8	82	4.2	0.7	2.5	2.2	4	1000	600
JK57HS100-4204	1.8	100	4.2	0.75	3	3	4	1100	700
JK57HS112-3004	1.8	112	3	1.6	7.5	3	4	1200	800
JK57HS112-4204	1.8	112	4.2	0.9	3.8	3.1	4	1200	800

Above only for representative products, products of special request can be made according to the customer request.

Suitable Power Supply Parameters:

Power Supply Model	Input voltage	Ouput voltage	Power	Weight	Size
S-120-24	AC100-240V	DC24V	120W	0.3kg	1299940mm
S-120-24	AC110V/220V	DC24V	120W	0.45kg	1999942mm
S-240-24	AC100-240V	DC24V	240W	0.48kg	1599942mm
S-240-24	AC110V/220V	DC24V	240W	0.6kg	20011050mm
S-480-24	AC110V/220V	DC24V	480W	0.75kg	21511550mm
S-200-36	AC110V/220V	DC36V	200W	0.48kg	1999942mm
S-360-36	AC110V/220V	DC36V	360W	0.7kg	21511550mm
S-720-36	AC110V/220V	DC36V	720W	1.35kg	24524565mm

Power Supply Features:

This series of products has strong versatility and can be applied to various types of products such as lamps, monitoring, security, communication equipment, etc.

You may receive:

1. 3 or 4 Pcs JK57HS112 (Nema 23 Hybrid Stepper Motor) + 1 / 2 / 3 / 4 Pcs Power Supply + 4 PCS JKDM542 Driver + other partsNoted: If you need other motor combinations, please send inquiry to us or contact us directly.

No.	Output Voltage	Motor Quantity	Supply Quantity	Driver	Other
1	24V	4pcs stepper motor	1 / 2 / 3 / 4 PCS	4pcs —— JKDM542	board + cable + usb
2	36V	4pcs stepper motor	1 / 2 / 3 / 4 PCS	4pcs —— JKDM542	board + cable + usb

Motor Features:

Low heat (static, the current is almost zero, no heat).
Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the traditional stepping motor troubled low frequency resonance has a very good resistance).
Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine / placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.
Large torque output in some cases can simplify the complexity of the machine.

Application:

JKONGMOTOR’s stepper motors are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.

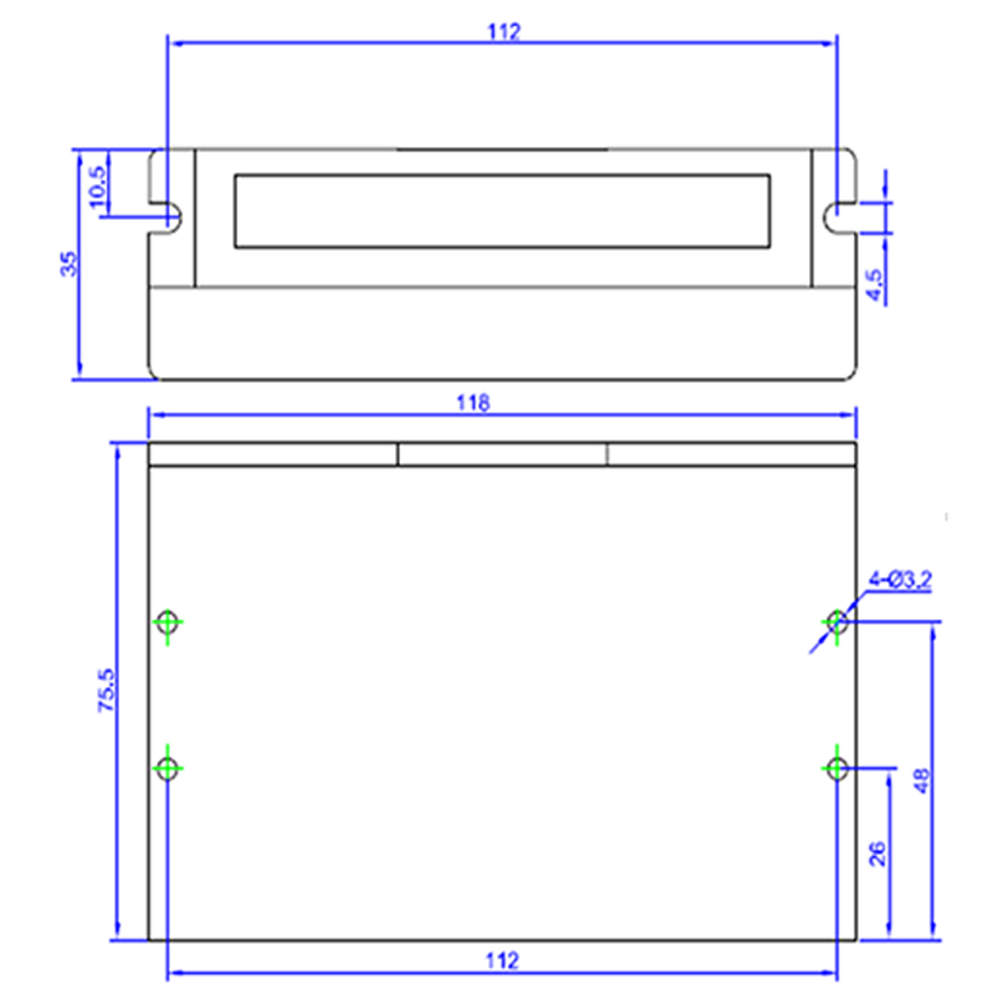

Motor Driver Parameters:

Features
Input voltage	18~60V DC
Output current	1.0A~4.2A(Peak)
Input Current	<4A
Humidity	Not condensation, no water droplets
Consumption	80W
Using environment	-10 ~ 45 ℃, avoid dust and corrosive gas
Storage environment	-40~+70℃

Motor Driver Features:

1, Average current control, 2-phase sinusoidal output current drive
 2, 8 channels output phase current setting
 3, Offline command input terminal
 4, High start speed
 5, High hording torque under high speed
 6, High performance, low price
 7, Opto-isolated signal I/O
 8, Overvoltage, under voltage, overcorrect, phase short circuit protection
 9, 15 channels subdivision and automatic idle-current reduction
 10 , Motor torque is related with speed, but not related with step/revolution

The connection between the driver and the two-phase hybrid stepping motor is four-wire. The motor windings are connected in parallel and in series, and the connection method is good. The high-speed performance is good, but the driver current is large (1.73 times the motor winding current). The drive current is equal to the motor winding current.

The characteristic of the output torque:

1) The larger the actual current of the motor, the greater the output torque, but the more copper loss (P=I²R) of the motor, the more heat the motor generates;2) The higher the supply voltage of the driver, the higher the high-speed torque of the motor;
3) It can be seen from the moment frequency characteristic diagram of the stepping motor that the high speed is smaller than the medium and low speed torque.

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
 Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.

1. Can you make the gearbox or gearmotor with custom specifications?
 YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

 2. Do you provide the samples?
 YES. Our company can provide the samples to you

 3.Do you provide technology support?
 YES. Our company have strong R&D capability, we can provide technology support if you need.

 4. why should you buy from us not from other suppliers?
 Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.

 5. How to ship to us?
 We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.

 6. How can I know the product is suitable for me?
 Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
