Customizable Nema 17 Closed Loop Stepper 42mm Diameter

Name: Customizable Nema 17 Closed Loop Stepper 42mm Diameter
Brand: Jkongmotor
Price: 4.15 USD

China Customizable Nema 17 Closed Loop Stepper 42mm Diameter wholesale

Brand Name : Jkongmotor

Model Number : JK42HS48-0604A-02F

Certification : CE, ROHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3-10pcs

Price : US$4.15~US$7.99/pcs

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 100000pcs/month

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Packaging Details : with export carton . big quantity with pallet

Type : Nema17 Stepper Motor

Stepper Angle : 1.8 dregee

Phase : 2

Current : 0.6A

Holding Torque : 4.8kg.cm

Phase Resistance : 20Ω

Phase Inductance : 18mH

Insulation Class : B

Motor Diameter : 42mm

Motor length : 48mm

MOQ : 10pcs

Contact Now

Customizable 1.8 degree 2 phase 4.8kg.cm Stepper Motor JK42HS48-0604A-02F Fireplace Motor

1) Product Description

item	value
Warranty	1 YEAR
Place of Origin	China
Brand Name	Jkongmotor
Model Number	IHSV57-30-14-36-01-BY
Phase	3
Type	Hybrid
Current / Phase	5.4A
Product name	Nema 23 Closed Loop Stepper Motor
Step angle	1.8 degree
Motor length	127.5mm
Resistance	0.78Ω
Inductance	0.84mH
Holding torque	0.45N.m
Number of leads	4

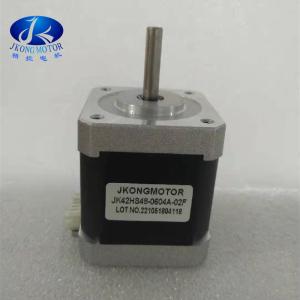

2) Product Images

Customizable Nema 17 Closed Loop Stepper 42mm Diameter

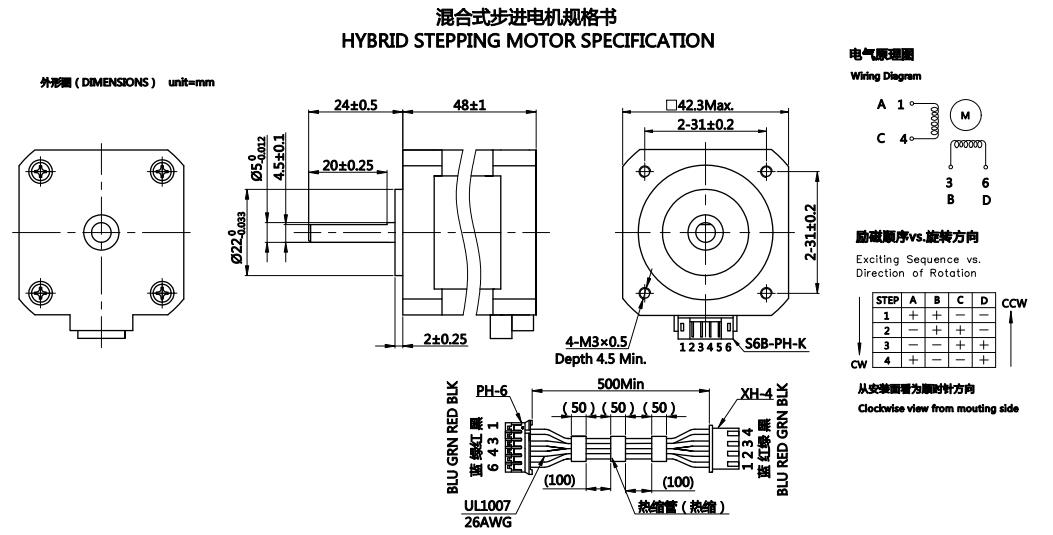

3) Product Drawings

4) Other Models

Motor series	Phase No.	Step angle	Motor length	Motor size	Leads No.	Holding torque
Nema 8	2 phase	1.8 degree	30~42mm	20x20mm	4	180~300g.cm
Nema 11	2 phase	1.8 degree	32~51mm	28x28mm	4 or 6	430~1200g.cm
Nema 14	2 phase	0.9 or 1.8 degree	27~42mm	35x35mm	4	1000~2000g.cm
Nema 16	2 phase	1.8 degree	20~44mm	39x39mm	4 or 6	650~2800g.cm
Nema 17	2 phase	0.9 or 1.8 degree	25~60mm	42x42mm	4 or 6	1.5~7.3kg.cm
Nema 23	2 phase	0.9 or 1.8 degree	41~112mm	57x57mm	4 or 6 or 8	0.39~3.1N.m
Nema 23	3 phase	1.2 degree	42~79mm	57x57mm	-	0.45~1.5N.m
Nema 24	2 phase	1.8 degree	56~111mm	60x60mm	8	1.17~4.5N.m
Nema 34	2 phase	1.8 degree	67~155mm	86x86mm	4 or 8	3.4~12.2N.m
Nema 34	3 phase	1.2 degree	65~150mm	86x86mm	-	2~7N.m
Nema 42	2 phase	1.8 degree	99~201mm	110x110mm	4	11.2~28N.m
Nema 42	3 phase	1.2 degree	134~285mm	110x110mm	-	8~25N.m
Nema 52	2 phase	1.8 degree	173~285mm	130x130mm	4	13.3~22.5N.m
Nema 52	3 phase	1.2 degree	173~285mm	130x130mm	-	13.3~22.5N.m
Above only for representative products, products of special request can be made according to the customer request.

5) Other Products

Customizable Nema 17 Closed Loop Stepper 42mm Diameter

6) Company Profile

CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance Co.,Ltd)is an ISO9001 Professional manufacturer. Was established in 2011 year. We are a professional manufacturer in Changzhou city, China. Production Capacity exceeds more than 1 million motors per year. Our Company offers three major series of products: Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor. We are always continues develop new type models.

 We are also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motors, Spindle motor and Motor drivers. We export our motors to more than 30 countries Such as United States, Germany, Russia, Turkey, Brazil and so on.

 Jkongmotor sold to major manufacturing Companies for Industry of automation, medical and health care equipment, 3d printer machines, packing devices, Information Technology, household appliance products.

 We have an Engineering team with many years of experience in application Engineering, design Engineering with the latest advances equipment. Our Engineering Staff provides the finest quality product with service after the product is delivered to our Customers.
