Nema24 60mm motor length 2.8A 21kg.cm Hybrid Stepper Motor With Brake

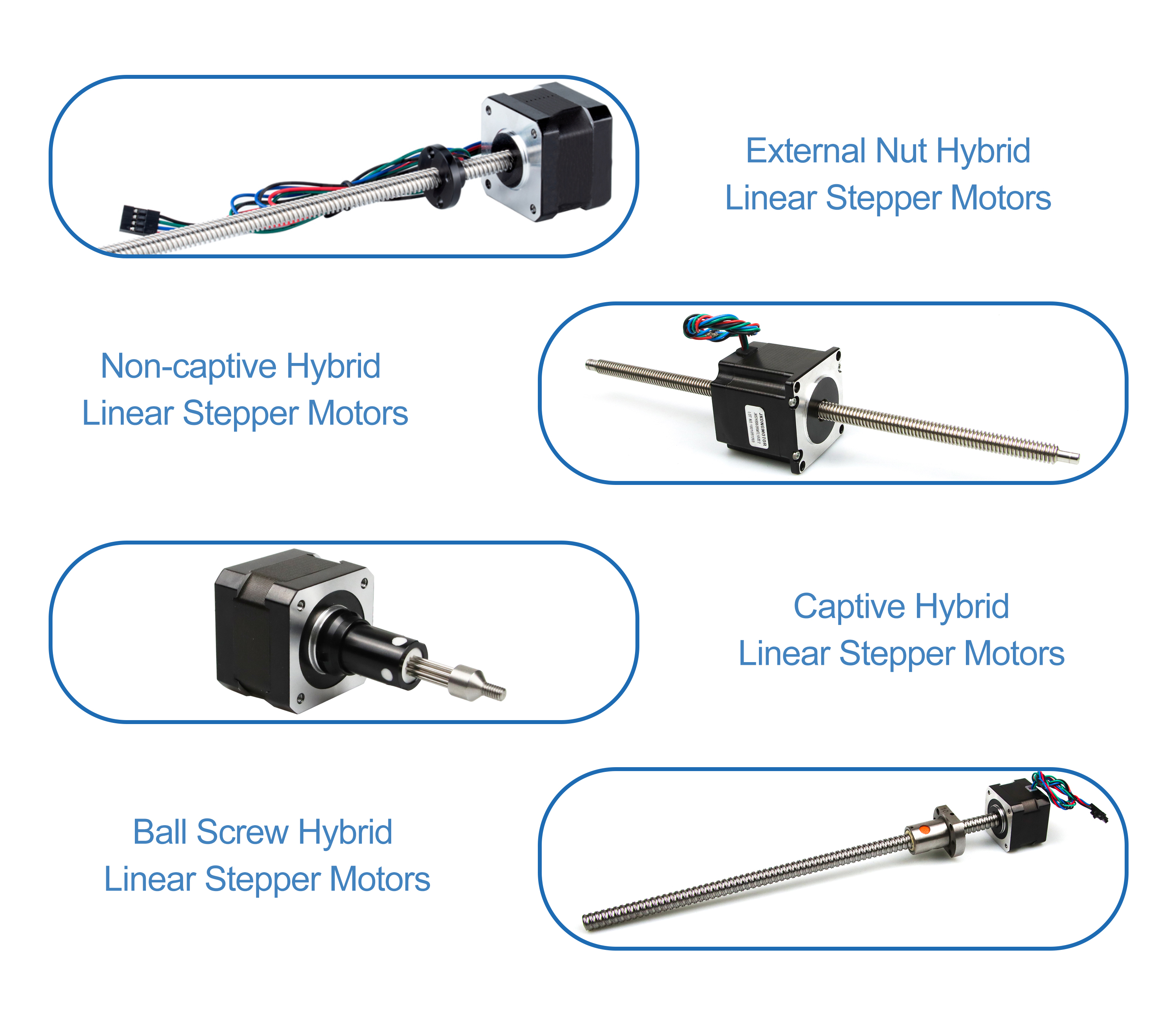

The NEMA 24 stepper motor linear actuator features easy integration into your applications, a high level of precision, safer performance, and an economical cost. The NEMA 24 stepper motor linear actuator has four form factors available – captive, non-captive external, and electric cylinder linear versions. Let our applications engineering team help you determine whether the NEMA 24 stepper motor linear actuator or one of our other linear actuator solutions is best suited to meet your application’s needs.
Electrical Specification:
- Step Angle Accuracy: ±5%
- Resistance Accuracy: ±10%
- Inductance Accuracy: ±20%
- Temperature Rise: 80°C Max
- Ambient Temperature: -20°C~+50°C
- Insulation Resistance: 100MΩ Min., 500VDC
- Dielectric Strength: 500VAC for one minute
- Shaft Radial Play: 0.02Max (450g-load)
- Shaft Axial Play: 0.08Max (450g-load)
Physical Specification:
- Frame Size: 60*60mm
- Body Length: 88mm
- Shaft Shape: D shaft
- Shaft Diameter: Φ8mm
- Shaft Length: 24mm
- Number of Leads: 8
- Lead Length: 300mm
Specification of JK60HS motors:
| Model No. | |
Motor Length |
Current
/Phase |
Resistance
/Phase |
Inductance
/Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
| | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm | Kg |
| JK60HS56-2008 | unipolar | 56 | 2 | 1.8 | 3. | 1.17 | 8 | 700 | 300 | 0.77 |
| parallel | 2.8 | 0.9 | 3.6 | 1.65 |
| Series | 1.4 | 3.6 | 14.4 | 1.65 |
| JK60HS67-2008 | unipolar | 67 | 2 | 2.4 | 4.6 | 1.5 | 8 | 900 | 570 | 1.2 |
| parallel | 2.8 | 1.2 | 4.6 | 2.1 |
| Series | 1.4 | 4.8 | 18.4 | 2.1 |
| JK60HS88-2008 | unipolar | 88 | 2 | 3 | 6.8 | 2.2 | 8 | 1000 | 840 | 1.4 |
| parallel | 2.8 | 1.5 | 6.8 | 3.1 |
| Series | 1.4 | 6 | 27.2 | 3.1 |
| JK60HS100-2008 | unipolar | 100 | 2 | 3.2 | 6.4 | 2.8 | 8 | 1100 | 980 | 1.7 |
| parallel | 2.8 | 1.6 | 6.4 | 4.0 |
| Series | 1.4 | 6.4 | 25.6 | 4.0 |
| JK60HS111-2008 | unipolar | 111 | 2.0 | 4.4 | 8.3 | 3.2 | 8 | 1200 | 1120 | 1.9 |
| parallel | 2.8 | 2.2 | 8.3 | 4.5 |
| Series | 1.4 | 8.8 | 33.2 | 4.5 |

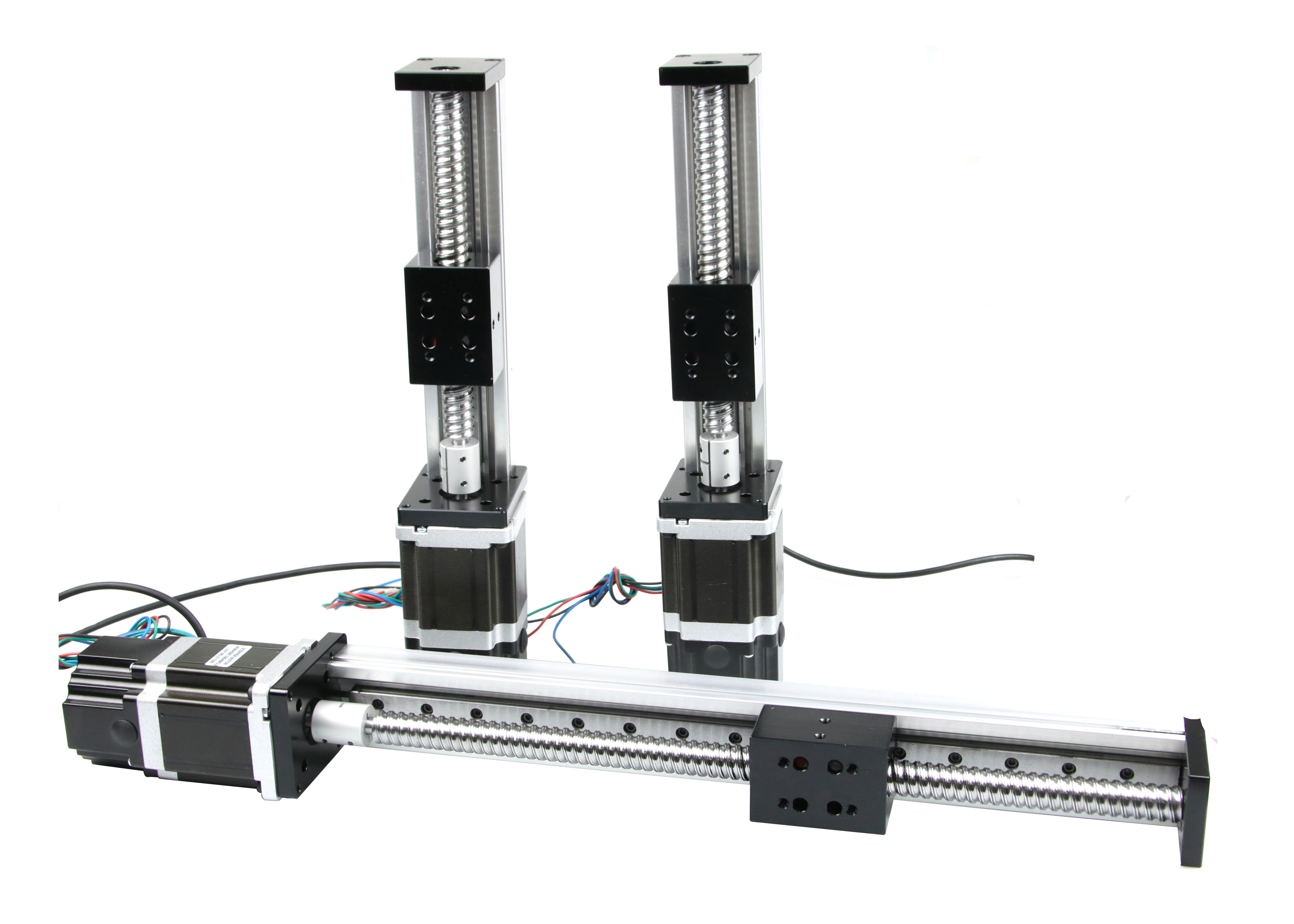

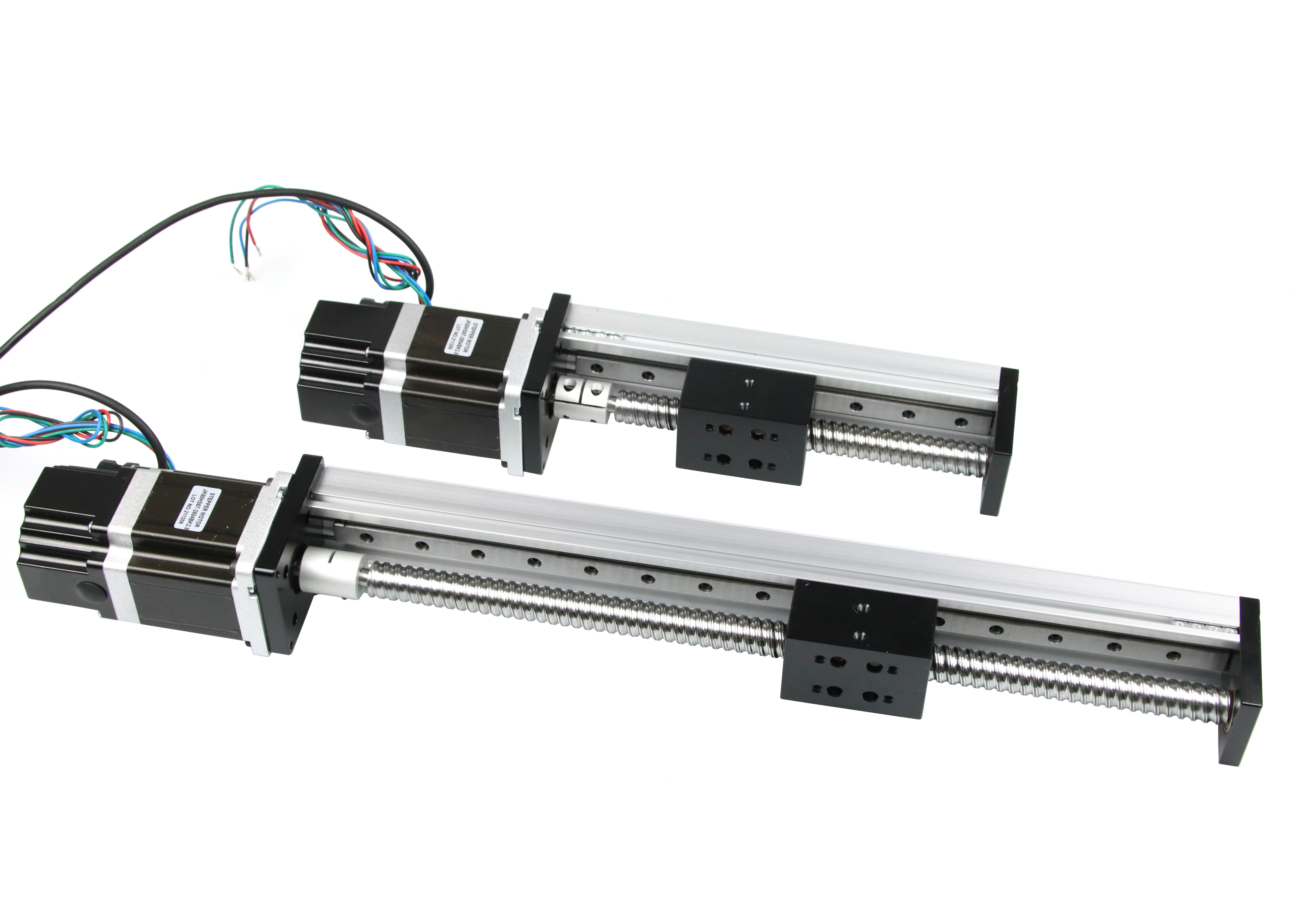

Details of Nema24 Linear Motion Ball Screw:

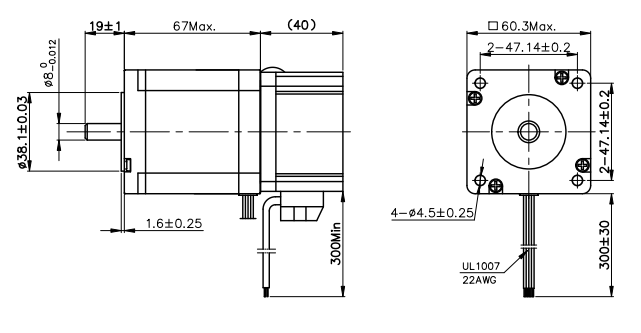

The drawing of JK60HS67-2804BK2.8:
