Nema17 Hybrid Stepper Motor 17HS4401 High Torque 4.2kg.cm 1.7A 40mm length for CNC router
Stepper motor is known by its property to convert a train of input pulses into a precisely defined increment in the shaft position.
This is a high quality motor that can be used for a long time without stuck.
It has a quite stable performance during work and will not loss step.
Low noise and big torque, this is a great choice if you need a stepper motor.
Stepper motor can be widely used for 3D printer, CNC engraving machine, etc.
1.Electrical Specification of 17HS4401 stepper motor:
- Model No. : JK42HS40-1704-13A
- Step Angle : 1.8°
- Motor Length : 40mm
- Current/Phase : 1.7A
- Resistance/Phase : 1.5Ω
- Inductance/Phase : 2.3mh
- Holding Torque : 4.2kg.cm
- # of Leads : 4
- Detent Torque :150g.cm
- Rotor Inertia :54g.cm
- Mass : 0.28kg
2.Genaral Specification of nema 17 stepper motor:
| Item | Specifications |
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5%(full step,no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
3.Drawing of 17HS4401:

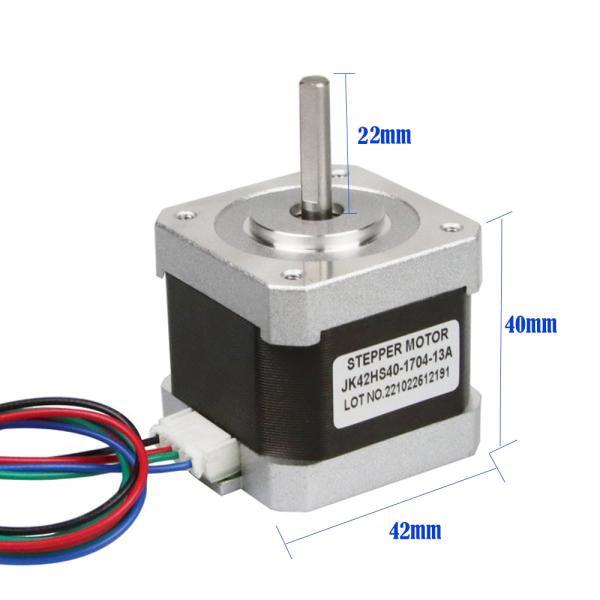

Product Details of JK42HS40-1704-13A:
4.Advantages of Hybrid Stepper Motor
The advantages of the Hybrid Stepper Motor are as follows:-
- Low cost for control achieved
- High torque at startup and low speeds
- Ruggedness
- Simplicity of construction
- Can operate in an open loop control system
- Low maintenance
- Less likely to stall or slip
- Will work in any environment
- Can be used in robotics in a wide scale.
- High reliability
- The rotation angle of the motor is proportional to the input pulse.
- The motor has full torque at standstill (if the windings are energized)
- Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3–5% of a step and this error is non-cumulative from one step to the next.
- Excellent response to starting/stopping/reversing.
- Very reliable since there are no contact brushes in the motor. Therefore, the life of the motor is simply dependent on the life of the bearing.
- The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
- It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
- A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.
