Nema 23 57mm High Torque Hybrid Stepper Motor 2304HS42D8 For N95 Mask Machine

Name: Nema 23 57mm High Torque Hybrid Stepper Motor 2304HS42D8 For N95 Mask Machine
Brand: Jkongmotor
Price: 1 USD

China Nema 23 57mm High Torque Hybrid Stepper Motor 2304HS42D8 For N95 Mask Machine wholesale

Brand Name : Jkongmotor

Model Number : JK57HS76-2804-23F

Certification : CE, ROHS, ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3-10pcs

Price : US $ 7 - 16 / Pieces

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 100000pcs/month

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Packaging Details : with export carton . big quantity with pallet

type : nema 23 stepper motor

out shaft : single shaft

Holding torque : 1.89N.m

Shaft type : single flat shaft

application : face mask machine and medical equipment

color : Sliver

Motor length : 76mm

frame size : 57*57mm

MOQ : 10pcs

Contact Now

Nema 23 Stepper Motor 57mm High Torque Stepper Motor 2304HS42D8 For N95 Mask Machine

General Specification of 2304HS42D8 stepper motor:

(Item)	(Specifications)
(Step Angle)	1.8°
(Temperature Rise)	80℃max
(Ambient Temperature)	-20℃~+50℃
(Insulation Resistance)	100 MΩ Min. ,500VDC
(Dielectric Strength):	500VAC for 1minute
(Shaft Radial Play)	0.02Max. (450g-load)
(Shaft Axial Play)	0.08Max. (450g-load)
(Max. radial force)	75N (20mm from the flange)
Max. axial force)	15N

Electrical Specifications of nema23 stepper motor for Ventilator:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
	( °)	(L)mm	A	Ω	mH	N.m	No.	g.cm	g.cm	Kg
JK57HS41-1006	1.8	41	1	7.1	8	0.48	6	250	150	0.47
JK57HS41-2008	1.8	41	2	1.4	1.4	0.39	8	250	150	0.47
JK57HS41-2804	1.8	41	2.8	0.7	1.4	0.55	4	250	150	0.47
JK57HS51-1006	1.8	51	1	6.6	8.2	0.72	6	300	230	0.59
JK57HS51-2008	1.8	51	2	1.8	2.7	0.9	8	300	230	0.59
JK57HS51-2804	1.8	51	2.8	0.83	2.2	1.01	4	300	230	0.59
JK57HS56-2006	1.8	56	2	1.8	2.5	0.9	6	350	280	0.68
JK57HS56-2108	1.8	56	2.1	1.8	2.5	1	8	350	280	0.68
JK57HS56-2804	1.8	56	2.8	0.9	2.5	1.2	4	350	280	0.68
JK57HS64-2804	1.8	64	2.8	0.8	2.3	1	4	400	300	0.75
JK57HS76-2804	1.8	76	2.8	1.1	3.6	1.89	4	600	440	1.1
JK57HS76-3006	1.8	76	3	1	1.6	1.35	6	600	440	1.1
JK57HS76-3008	1.8	76	3	1	1.8	1.5	8	600	440	1.1
JK57HS82-3004	1.8	82	3	1.2	4	2.1	4	1000	600	1.2
JK57HS82-4008	1.8	82	4	0.8	1.8	2	8	1000	600	1.2
JK57HS82-4204	1.8	82	4.2	0.7	2.5	2.2	4	1000	600	1.2
JK57HS100-4204	1.8	100	4.2	0.75	3	3	4	1100	700	1.3
JK57HS112-3004	1.8	112	3	1.6	7.5	3	4	1200	800	1.4
JK57HS112-4204	1.8	112	4.2	0.9	3.8	3.1	4	1200	800	1.4

JK57HS76-2804-23F

Dimensions:

(Unit=mm)

Nema 23 57mm High Torque Hybrid Stepper Motor 2304HS42D8 For N95 Mask Machine

Similar products for face mask machine and Ventilator,as below:

nema 23 double shaft stepper motor,sliver color

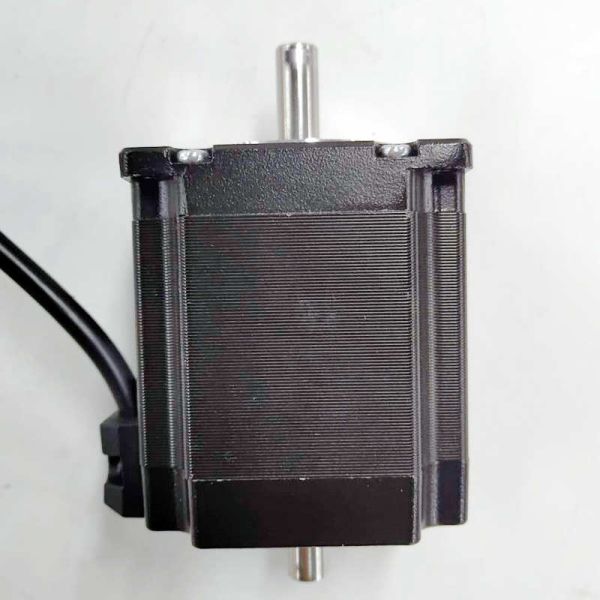

Nema 23 double shaft stepper motor, black color

Other products:
Hybrid stepper motor/brushless DC motor/stepper driver/BLDC driver/closed loop stepper motor/gear reducer stepper motor/gear reducer brushless DC motor/spindle motor and VFD/AC servo motor kit/DC motor/coupling/pully and so on.
