Home > Linear Stepper Motor >

High Precision Nema 23 Linear Actuator Stepping Motor Ball Screw

Product Categories
CHANGZHOU JKONGMOTOR CO.,LTD
Contact Now

High Precision Nema 23 Linear Actuator Stepping Motor Ball Screw

  • 1
  • 2

Brand Name : Jkongmotor

Model Number : JK57HS56

Certification : CE, ROHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3-10pcs

Price : US$20 ~ US$70

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 50000pcs/month

Delivery Time : For samples , 15-25 days / For batch , 30 days

Packaging Details : with export carton . big quantity with pallet

Shaft : linear actuator motor

Leads : bipolar stepper motor

Current : 2.8A

Holding Torque : 12kg.cm

Length : 56mm

Screw Rod : Ball Screw

Step Angle : 1.8 step motor

MOQ : 10pcs

Contact Now

High Precision Nema 23 Linear Actuator Stepping Motor Ball Screw

Precision Stepper Motor Electrical Specification:

Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

 Holding Torque # of Leads Detent Torque Rotor Inertia
( °) (L)mm A Ω mH N.m No. g.cm g.cm
JK57HS41-2804 1.8 41 2.8 0.7 1.4 0.55 4 250 150
JK57HS51-2804 1.8 51 2.8 0.83 2.2 1.01 4 300 230
JK57HS56-2804 1.8 56 2.8 0.9 2.5 1.2 4 350 280
JK57HS76-2804 1.8 76 2.8 1.1 3.6 1.89 4 600 440
JK57HS82-3004 1.8 82 3 1.2 4 2.1 4 1000 600
JK57HS100-4204 1.8 100 4.2 0.75 3 3 4 1100 700
JK57HS112-3004 1.8 112 3 1.6 7.5 3 4 1200 800
JK57HS112-4204 1.8 112 4.2 0.9 3.8 3.1 4 1200 800

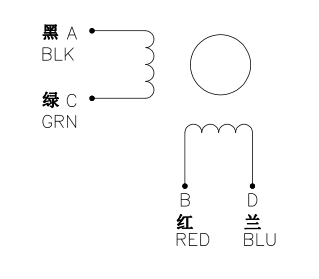

Nema Stepper Motor Wiring Diagram:

High Precision Nema 23 Linear Actuator Stepping Motor Ball Screw


Product Tags:

JK57HS56



56mm linear actuator motor


China High Precision Nema 23 Linear Actuator Stepping Motor Ball Screw wholesale

High Precision Nema 23 Linear Actuator Stepping Motor Ball Screw Images
