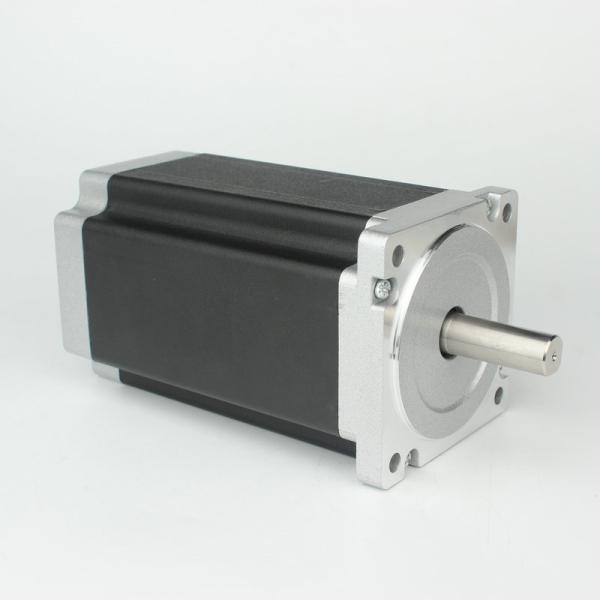

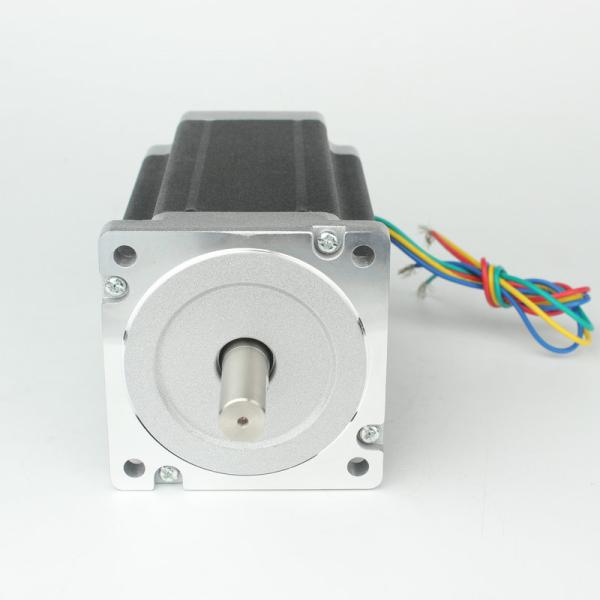

86mm Nema34 Hybrid Stepper Motor 8.7N.M Length115mm For CNC Router

Name: 86mm Nema34 Hybrid Stepper Motor 87NM Length115mm For CNC Router
Brand: Jkongmotor
Price: 26 USD

China 86mm Nema34 Hybrid Stepper Motor 8.7N.M Length115mm For CNC Router wholesale

Brand Name : Jkongmotor

Model Number : JK86HS115

Certification : CE, ROHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3-10pcs

Price : US$26~US$36

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 100000pcs/month

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Packaging Details : with export carton . big quantity with pallet

Shaft : D shaft / Round shaft / Keyway shaft

Leads : 4 / 8

Current : 6.0A / 4.2A

Holding Torque : 8.7N.m

Motor Length : 115mm

Weight : 3.8KG

Step Angle : 1.8 degree

Phase : 2 phase

MOQ : 10pcs

Contact Now

86mm Nema34 Hybrid Stepper Motor 8.7N.M Length115mm For CNC Engraving Machine

1.Genaral Specification of nema 34 stepper motor kit :

Item	Specifications
Step Angle	1.8°
Temperature Rise	80℃max
Ambient Temperature	-20℃~+50℃
Insulation Resistance	100 MΩ Min. ,500VDC
Dielectric Strength	820VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	220N (20mm from the flange)
Max. axial force	60N

2.Electrical Specification Of nema34 stepper motor:

Model No.	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
	(L)mm	A	Ω	mH	N.m	No.	Kg.cm	g.cm	Kg
JK86HS115-6004 FL86STH118-6004A	115	6.0	0.6	6.5	8.7	4	2.4	2700	3.8
JK86HS115-4208 FL86STH118-4208A	115	4.2	0.9	6.0	8.7	8	2.4	2700	3.8

Matching Stepper motor Driver: JKD7208S OR JKD2060AC

4.Drawing Of fulling motor FL86STH118-6004A
86mm Nema34 Hybrid Stepper Motor 8.7N.M Length115mm For CNC Router

86mm Nema34 Hybrid Stepper Motor 8.7N.M Length115mm For CNC Router
